19″ Panel PC stainless steel – “Taurus” series

Panel PC stainless steel with protection level up to IP67This robust 19” Panel PC from the “Taurus” series was especially conceptualized for production environments with extreme demands, as for example in the food, chemical, pharmaceutical industry, as well as the automation or outdoor industries.

The Touch Panel PC is a completely enclosed desktop housing, made from integrated V2A or V4A stainless steel and meets the protection standard of IP67 (alternately IP65). Not dust, water, alkali/acids nor blood can affect this industrial PC. This makes a thorough cleaning possible.



There are three base models available:

  1. IP67 TrueFlat with completely flat surface and waterproof screw in connectors
  2. IP67 Line with waterproof screw in connectors
  3. IP65 Line with connectors protected from water sprays

The Panel PC has a standard option of a non vented Intel Atom N2600 processor with 1,6 GHz, 2 GB DDR3 cache, as well as a 320GB HDD hard drive which is suited for a 24/7 operation.

The TFT display has a standard option of an optical non reflective protective screen. This can, depending on the customer’s wishes, be switched out for a touchscreen display. There are a variety of touchscreen technologies that are available (resistive Touch, GFG Touch, Projected Capacitive Multitouch).

As an optional feature, this 19” Panel PC can be retrofitted for usage in an expanded temperature range. This way it can be utilized in surroundings with a temperature from -20° C up to +70° C. With the display that can be used in direct sunlight, as well as the Optical Bonding, it is very suitable for use outdoors.

Of course, all components are specially equipped for a 24/7 continuous industrial use. Depending on the customer’s wishes, the 19” industrial computer can easily be configured.



Specifications

  • Panel PC with a 19″ TFT display (=483 mm diagonal)
  • Completely enclosed housing made of V2A stainless steel (V4A optional)
  • Protection level: IP67 (waterproof and dust proof)
  • Lexan screen with scratch resistant coating
  • CPU: Intel Atom N2600, 1,6 GHz –  fanless
  • RAM: 2GB DDR3
  • Hard drive: HDD 320GB
  • Resolution: 1280 x1024 pixel
  • Brightness: 300 cd/m2
  • waterproof screw in connectors: 2 x RS232/422/485, 2 x USB 2.0, 1 x LAN 10/100/1000 Base T Ethernet
  • Operating voltage: 12V DC
  • Attachment as per VESA Standard 100
  • Dimensions: 461 x 389 x 68,2 mm (wxhxd)
  • Weight: approx. 8,5 kg
  • Operating temperature: 0°C to +50°C (optionally -20°C to +70°C)
  • Designed for 24/7 continuous operation
  • Long term availability
  • Customer specific retrofitting
  • Article ID: will be issued according to customization

Options

  • Housing made of V4A stainless steel
  • Touch Display with varied Touch technologies: resistive, Glass-Film-Glass or Projective capacitive Touch / Multitouch
    (Installation via serial port RS 232 or USB connection)
  • High brigthness display or displays that work in sunlight up to 1500 cd/m2, the characteristics are improved with Optical Bonding
  • CPU: Intel Atom processorN2800 – 1,86 GHz (fanless)
    Intel Core i3 processor – 2,26 GHz (fanless)
  • RAM: 4GB
  • SSD up to 128GB
  • I/O Port: VGA (15 pin HD-D Sub)
  • Kit for expanded temperature range  -20° bis +70° C
  • Operating voltage: either 24V DC or 110V – 230V AC (with broad range power supply)
  • Wireless LAN with IP67 antenna
  • Varied accessories: can be configured with IP67 connectors, base / mount, Touch Pen, keyboard, printer. scanner, scale, weight display
  • Operating system: Windows XP Pro for Embedded, Windows 7 Pro for Embedded

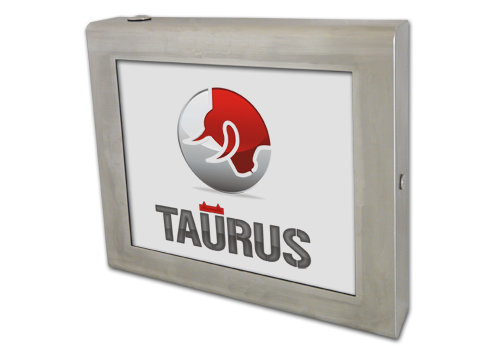

19  inch Panel PC stainless steel

19″ Touch Panel PC stainless steel
