operating modules
These control modules and control panels serve as a replacement for controls of the corresponding companies. The membrane keyboard corresponds to the original control, is printed in 5 colors and is equipped with the control elements, buttons and LEDs and.
Operator Panels
- Bedientafel Heidenhain 3580
- Bedientafel Boehringer B2T
- Bedientafel Boehringer B3T
- Bedientafel für Siemens OP12 (Steuerung 840Di)
Bedienmodule
Maschinensteuertafel
Replacement monitors for controls (CNC, milling, etc.)

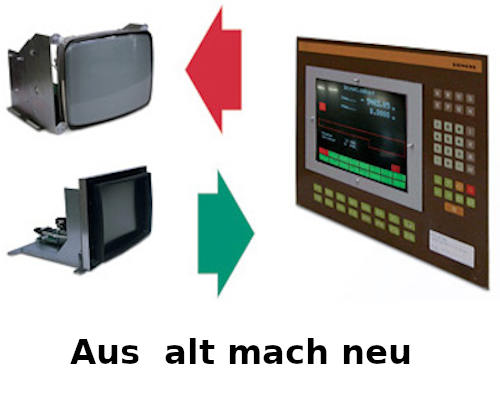

The TFT replacement monitors serve as a replacement for defective or old tube monitors and TFT screens.
These monitors are built into machine controls from all common manufacturers in the industry, such as
- Fanuc
- Heidenhain
- Siemens Sinumerik
- Delem
- Cybelec
- und weitere.
Here you find the complete list TFT replacements
Replacement monitors for controls (CNC, milling, etc.)
39/5000 Touchscreen and front foils from Siemens
With Siemens Simatic and Siemens Sinumerik, the touch screens and front foils can be exchanged. Please ask for availability from our customer service. Here is a list of all available front foils and touch screens list of all available products. Please note the minimum purchase of 10 pieces each!
713/5000

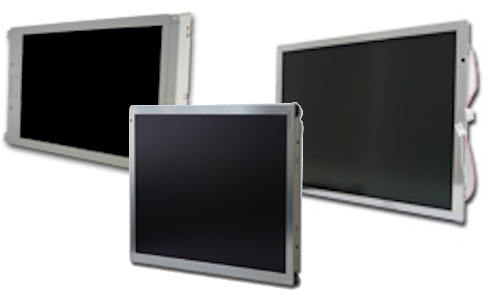

We deliver discontinued or hard-to-find TFT displays for trade and industry, such as LG Philips, NEC, Samsung or Sharp.
The available TFT displays can be found in the list shown here:
| Hersteller Bezeichnung | Displaygröße | Bildpunkte | Maße (H x B x T) mm | Artikelnummer | Weitere Informationen |
|---|---|---|---|---|---|
| Sharp LM64P83L | 9.4″ TFT | 640 x 480 | 174 x 260 x 7 | 2362269 | Ersatz für Sinumerik 840D MMC 100 von Siemens (6FC5203-0AB10-0AA1 sowie 6FC5210-0DA00-0AA0) Datenblatt (PDF) |
| Sharp LQ10D13K | 10.4″ TFT | k.A. | k.A. | 2362199 | Kein Datenblatt vorhanden |
| Sharp LQ10D367 | 10.4″ TFT | 640 x 480 | 179,4 x 246,5 x 10,5 | 2361772 | Datenblatt (PDF) |
| Sharp LQ121S1DG31 | 12.1″ TFT | 800 x 600 | 209 x 276 x 14 | 2363148 | Datenblatt (PDF) |
| Sharp LQ150X1LW71N | 15.0″ TFT | 1024 x 768 | 254,7 x 331,6 x 12,5 | 2361984 | Datenblatt (PDF) |
| LG Philips LC150X01 | 15.0″ TFT | k.A. | k.A. | 2361670 | Kein Datenblatt vorhanden |
| LG Philips LB121S03-TD01 | 12.1″ TFT | 800 x 600 | 218 x 280 x 11 | 2361828 | Nachfolgemodell zu LB121S02 Datenblatt (PDF) |
| LG Philips LB121S02 | 12.1″ TFT | 800 x 600 | 218 x 280 x 11 | 037654001 | Datenblatt (PDF) |
| LG Philips LB104V03 | 10.4″ TFT | 640 x 480 | 180 x 236 x 10 | 037654002 | Datenblatt (PDF) |
| LG Philips LB104S01-TL01 | 10.4″ | 800 x 600 | 172 x 224,5 x 5,7 | 2361422 | Datenblatt (PDF) |
| LG Philips LB064V02 | 6.4″ TFT | 640 x 480 | 111,5 x 145,5 x 6,0 | 037654003 | Datenblatt (PDF) |
| Samsung LTN104S2-L01 | 10.4″ TFT | 800 x 600 | 172,5 x 244,5 x 6,3 | 2362135 | Datenblatt (PDF) |
| Toshiba LTD121KC5S-V02 | 12.1″ TFT | 1024 x 768 | 199 x 269 x 6,8 | 2361436 | Datenblatt (PDF) |
